Product Overview

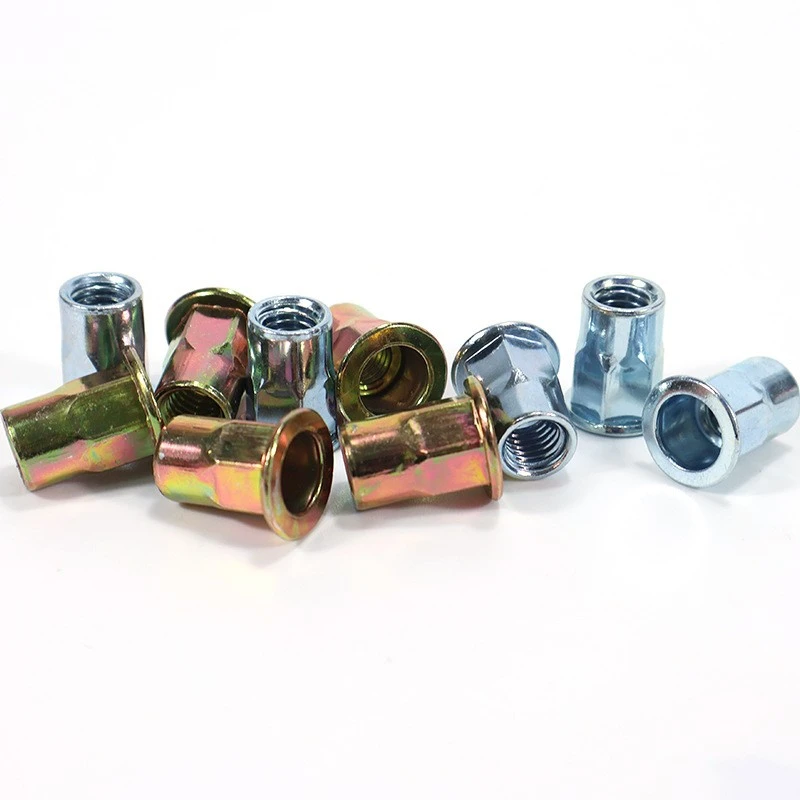

Half Hex Rivet Nuts combine the advantages of circular and hexagonal structures. A partial hexagonal anti-rotation section is designed on the outer surface to improve engagement with the installation hole while maintaining convenient installation performance.
Manufactured from stainless steel and carbon steel materials, these fasteners balance assembly efficiency and connection reliability. They are suitable for structural components requiring optimized space utilization, lightweight design, and stable fastening performance.
Half Hex Rivet Nuts provide flexible connection solutions for complex sheet metal structures and industrial equipment assembly.
Product Features
- Combines convenient installation with enhanced anti-rotation capability.
- Suitable for reliable threaded connections in thin sheet materials.
- Adaptable structure for complex sheet metal applications.
- Supports customized specifications according to product design.
- Available with different materials and surface treatment options.
Applications
Half Hex Rivet Nuts are mainly used in new energy vehicle components, energy storage equipment, medical device structures, electronic equipment housings, industrial equipment, and precision sheet metal manufacturing.
They are suitable for applications requiring compact structures and dependable threaded fastening.
Service Advantages
The company supports OEM/ODM customized services and can develop products based on customer drawings, samples, or technical requirements.
According to different project needs, the company provides sample confirmation, production adjustment, and mass manufacturing services to support customers from product development to final production.
Product Parameters
|
Parameter |
Description |
|
Product Name |
Half Hex Rivet Nuts |
|
Material |
Stainless steel, carbon steel |
|
Structure Type |
Half hexagonal outer structure |
|
Thread Specification |
Selectable according to requirements |
|
Specification Range |
Customized production supported |
|
Surface Treatment |
Customized according to application conditions |
|
Development Cycle |
Customized samples approximately 10–15 working days |
|
Service Mode |
OEM/ODM supported |
Hot Tags: half hex rivet nuts, China half hex rivet nuts manufacturers, suppliers, factory, Blind Hole Rivet Nuts, Cylindrical Rivet Nuts, Half Hex Rivet Nuts, Internal External Hex Rivet Nuts, Knurled Rivet Nuts, Small Head Rivet Nuts

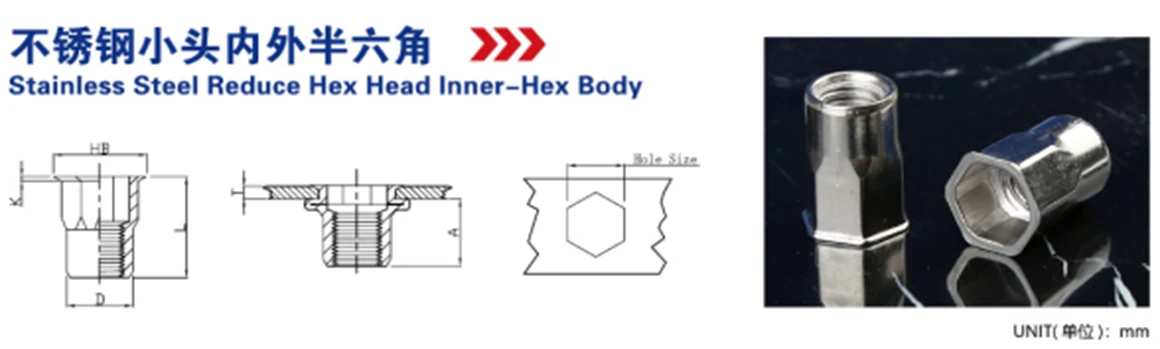

| Thread | T Min/Max |
L | A | Hole Size | D | B | K |
| M3 | 0.5-1.5 | 9.9 | 5.2 | 5.0 | 4.9 | 6.0 | 0.5 |
| 1.5-2.5 | 11.0 | 5.5 | |||||
| M4 | 0.5-2.0 | 12.0 | 8.0 | 6.0 | 5.9 | 7.0 | 0.5 |
| 2.0-4.0 | 14.0 | ||||||
| M5 | 0.5-2.5 | 13.0 | 8.2 | 7.0 | 6.9 | 8.0 | 0.6 |
| 2.0-4.0 | 15.0 | 0.5 | |||||
| M6 | 1.0-3.0 | 16.0 | 10.7 | 9.0 | 8.9 | 10.0 | 0.6 |
| 3.5-5.0 | 18.0 | ||||||
| M8 | 1.0-3.5 | 17.5 | 11.2 | 11.0 | 10.9 | 12.0 | 0.7 |
| 3.5-5.0 | 19.5 | ||||||
| M10 | 1.0-4.0 | 21.0 | 13.5 | 13.0 | 12.9 | 14.5 | 0.8 |
| 3.5-5.0 | 23.0 | ||||||
| M12 | 1.0-4.0 | 24.0 | 14.8 | 16.0 | 15.9 | 17.5 | 0.8 |
| 4.0-6.0 | 27.0 |

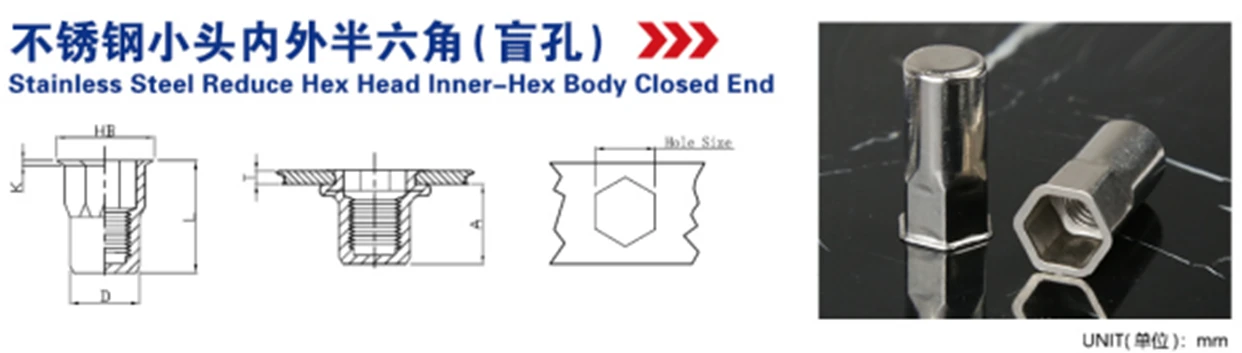

| Thread | T Min/Max |
L | A | Hole Size | D | B | K |
| M3 | 0.5-1.5 | 13.0 | 8.5 | 5.0 | 4.9 | 6.0 | 0.5 |
| 1.5-2.5 | 15.0 | ||||||
| M4 | 0.5-2.0 | 15.5 | 11.5 | 6.0 | 5.9 | 7.0 | 0.5 |
| 2.0-4.0 | 17.5 | ||||||
| M5 | 0.5-2.5 | 18.0 | 13.5 | 7.0 | 6.9 | 8.0 | 0.5 |
| 2.0-4.0 | 20.0 | ||||||
| M6 | 0.5-3.5 | 21.5 | 15.8 | 9.0 | 8.9 | 10.0 | 0.6 |
| 3.5-5.0 | 23.0 | ||||||
| M8 | 1.0-3.5 | 24.0 | 18.2 | 11.0 | 10.0 | 12.0 | 0.7 |
| 3.5-5.0 | 26.0 | ||||||
| M10 | 1.0-4.0 | 30.5 | 23.2 | 13.0 | 12.0 | 14.5 | 0.75 |
| 3.5-6.0 | 33.0 | ||||||
| M12 | 1.0-4.0 | 31.5 | 23.2 | 16.0 | 15.9 | 17.5 | 0.75 |
