Product Overview

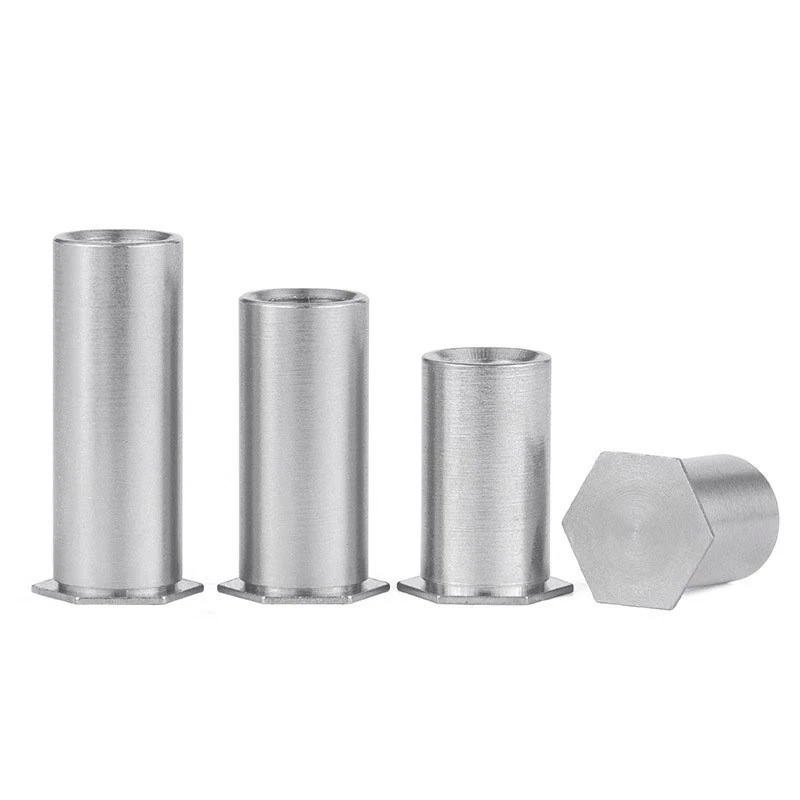

Blind Hole Rivet Nuts are threaded fastening components specially designed for single-side installation applications. Through controlled deformation during riveting, they are securely fixed inside blind holes to provide reliable threaded connections without requiring access to the rear side of the workpiece.
Manufactured from stainless steel and carbon steel materials, these fasteners offer flexible installation, stable connection performance, and wide application compatibility.
Blind Hole Rivet Nuts effectively solve installation challenges in structures where traditional nuts cannot be positioned, making them suitable for complex assemblies and enclosed components.
Product Features
- Single-side installation without requiring access to the rear surface.
- Provides stable mechanical locking after riveting.
- Reduces processing limitations without welding requirements.
- Suitable for standardized assembly and mass production.
- Available in various specifications and customized designs.
Applications
Blind Hole Rivet Nuts are commonly used in new energy vehicle battery boxes, energy storage cabinets, industrial equipment housings, medical equipment frames, aerospace structural components, and various sheet metal products.
They are suitable for applications requiring reliable threaded connections in enclosed or difficult-to-access structures.
Service Advantages
The company has an independent technical development team and can provide product development based on customer drawings, samples, or application requirements.
According to different installation conditions, the company offers material selection, structural optimization, and sample verification services. Small-batch trial production and mass production conversion are supported.
Product Parameters
|
Parameter |
Description |
|
Product Name |
Blind Hole Rivet Nuts |
|
Material |
Stainless steel, carbon steel |
|
Thread Specification |
Multiple standard sizes available |
|
Size Range |
Manufactured according to customer requirements |
|
Surface Treatment |
Customized protective treatments available |
|
Dimensional Tolerance |
Controlled according to technical standards |
|
Custom Method |
Drawing and sample development supported |
|
Sample Lead Time |
Customized samples approximately 10–15 working days |
Hot Tags: blind hole rivet nuts, China blind hole rivet nuts manufacturers, suppliers, factory, Blind Hole Rivet Nuts, Cylindrical Rivet Nuts, Flat Head Rivet Nuts, Full Hex Rivet Nuts, Knurled Rivet Nuts, Small Head Rivet Nuts

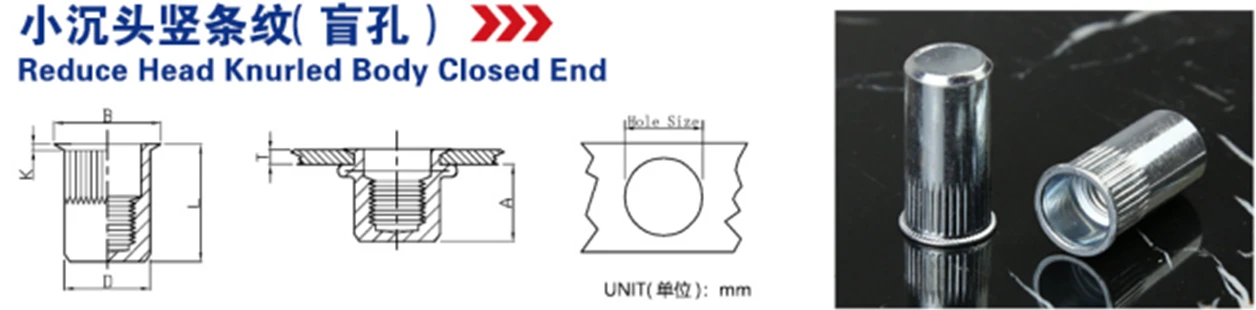

| Thread | T Min/Max |
L | A | Hole Size | D | B | K |
| M3 | 0.5-1.5 | 12.5 | 6.2 | 5.0 | 4.9 | 6.0 | 0.5 |
| M4 | 0.5-2.0 | 15.0 | 11.0 | 6.0 | 5.9 | 7.0 | 0.5 |
| 2.0-3.5 | 16.5 | ||||||
| M5 | 0.5-2.0 | 16.5 | 12.5 | 7.0 | 6.9 | 8.0 | 0.5 |
| 2.0-3.5 | 18.0 | ||||||
| M6 | 0.5-3.0 | 20.5 | 15.5 | 9.0 | 8.9 | 10.0 | 0.6 |
| 3.0-4.5 | 22.0 | ||||||
| M8 | 0.5-3.0 | 23.0 | 17.0 | 11.0 | 10.9 | 12.0 | 0.65 |
| 3.0-4.5 | 24.5 | ||||||
| M10 | 1.0-3.0 | 24.5 | 18.2 | 13.0 | 12.9 | 14.0 | 0.7 |
| 3.0-5.0 | 26.0 | ||||||
| M12 | 1.0-4.0 | 29.0 | 20.0 | 16.0 | 15.9 | 17.6 | 0.8 |
| 3.0-6.0 | 32.0 | ||||||
| M12(No chrysanthemums) | 2.0-5.0 | 36.0 | 26.0 | 16.0 | 15.9 | 17.5 | 0.95 |
