Product Overview
Through Hole Self Clinching Fasteners are connection components fixed onto sheet materials through pressing force. Featuring a through-hole structure, they can be combined with other fasteners or connecting components to achieve reliable assembly.
Manufactured from stainless steel and carbon steel, these components are designed for structural parts requiring improved connection strength and enhanced assembly efficiency. After press installation, they reduce the need for traditional welding or complex machining processes, improving production consistency.
Through Hole Self Clinching Fasteners provide efficient fastening solutions for industrial sheet metal applications.
Product Features
- Through-hole design allows convenient installation of additional components.
- Stable mechanical engagement improves connection reliability.
- Suitable for industrial mass production.
- Supports customized dimensions and structural designs.
- Helps simplify manufacturing processes.
Applications
Through Hole Self Clinching Fasteners are mainly used in new energy vehicle body structures, energy storage equipment frames, industrial equipment, medical equipment housings, electronic product enclosures, and various metal sheet components.
They are suitable for applications requiring efficient and stable sheet metal fastening solutions.
Quality Advantages
The company strictly follows IATF16949 quality management requirements and applies standardized control throughout production.
From raw material inspection and machining to finished product testing, the company has established complete quality procedures. Third-party inspection is supported to ensure products meet project requirements.
Product Parameters
|
Parameter |
Description |
|
Product Name |
Through Hole Self Clinching Fasteners |
|
Material |
Stainless steel, carbon steel |
|
Structure Type |
Through-hole structure |
|
Hole Size Specification |
Customized according to requirements |
|
Size Range |
Non-standard machining supported |
|
Surface Treatment |
Selected according to application environment |
|
Quality Management |
IATF16949 quality system |
|
Inspection Support |
Third-party inspection supported |
Hot Tags: through hole self clinching fasteners, China through hole self clinching fasteners manufacturers, suppliers, factory, Blind Hole Self Clinching Fasteners, Clinch Nut Standard, Hex Clinch Nuts, press in fasteners, Self Clinching Standoffs, Through Hole Self Clinching Fasteners

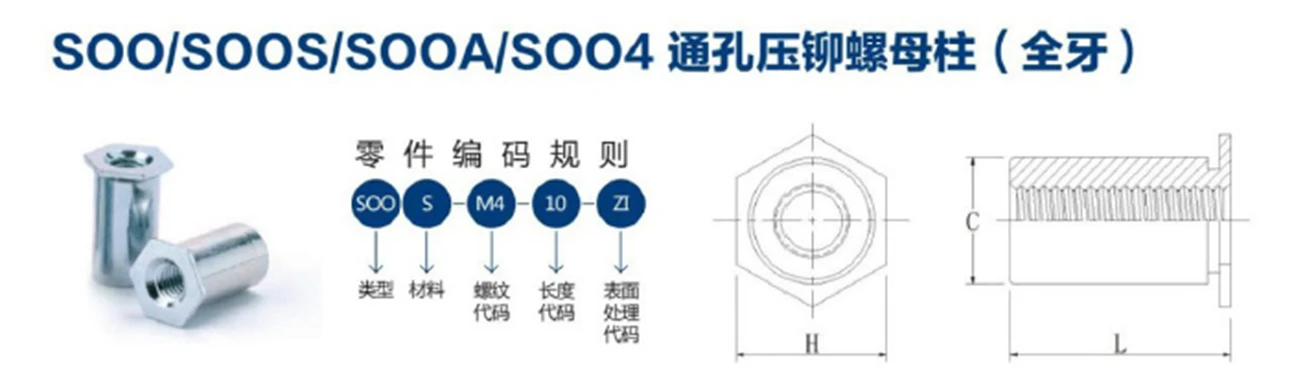

| Product Specification | Sheet Thickness min | Sheet Hole Size +0.08 | Outside Diameter C -0.13 | Across Flats H | Hole Center to Panel Edge Distance a min | |
| M3 | 1 | 4.22 | 4.2 | 4.8 | 6 | |
| 3.5M3 | 1 | 5.41 | 5.4 | 6.4 | 6.8 | |
| M3.5 | 1 | 5.41 | 5.4 | 6.4 | 6.8 | |
| 6.0M4 | 1.2 | 6.00 | 6.0 | 7 | 7.5 | |
| M4 | 1.27 | 7.14 | 7.12 | 7.9 | 8 | |
| M5 | 1.27 | 7.14 | 7.12 | 7.9 | 8 | |
| M6 | 1.30 | 8.75 | 8.72 | 10.00 | 9 | |
